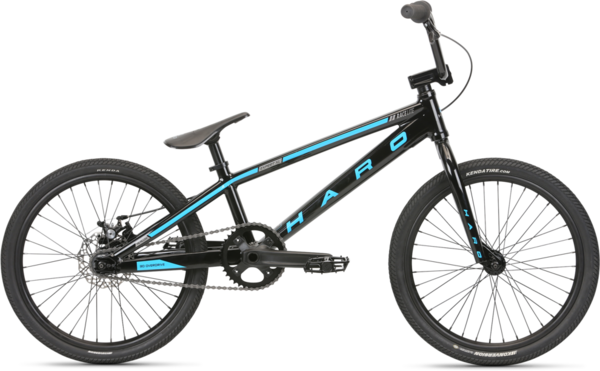

Haro Expert XL

Haro Expert XL
  • Color: Black
Color: Black
Size: 20-inch
Please select options Unavailable


The Expert XL model is where size and spec are both stepped up a few notches in the Race Lite line. At the heart of the Expert XL is the 6061 alloy frame, which boasts an integrated head tube, 3D dropouts with integrated chain adjusters, and the PTC (Power Transfer Center), which is a combination of an oversized down tube and BB86 bottom bracket shell. The drivetrain rolls onto the track with 170mm 2-piece alloy race cranks combined with a sealed bearing BB86 press fit bottom bracket for optimum power delivery. Controls are stepped up in size and strength with a 1 1/8" steer tube, 100% chromoly fork, expert rise chromoly bars, and Pivotal seat/post combo. All this rolling on 36-spoke alloy wheels with sealed bearings makes for pro-level speed and handling.

- 6061 series smooth weld alloy frame with integrated head tube, internal cable routing, 3D dropouts with integrated chain tensioners
- PTC (Power Transfer Center), triple butted air formed top tube, oversized triple butted down tube, and BB86 bottom bracket shell
- 100% chromoly fork
- Alloy bars and Haro CNC alloy front-load stem
- 2-piece alloy cranks with sealed press fit BB86
- Fully sealed wheels with double wall alloy rims, a sealed rear cassette hub, and alloy nipples
- Kenda Konversion tires
- Plastic Pivotal seat with alloy post
- Promax mechanical disc brake, 160mm rotor


Frame 6061 Series Alloy Frame w/ Integrated Headtube, Internal Cable Routing & Smooth Welding
Fork Full Cr-Mo 1 1/8" Threadless
Headset Integrated 1 1/8"
Axles 3/8"
Rims/Wheels 20" Alloy 36h, Double Wall
Hubs Front: Low Flange Alloy 36h, Sealed Bearing
Rear: Alloy Disc Cassette 36h, Sealed Bearing, 6-Bolt
Tires Kenda Konversion 20 x 1.65" Front / 20 x 1.50" Rear
Crankset 2-pc Alloy w/ 24mm Hollow Spindle, 170mm
Chainrings 38T Alloy
Bottom Bracket Press-Fit BB86, Sealed Bearing
Chain KMC Z33
Freewheel 15T
Handlebars Alloy Bar, 6.5" Rise
Tape/Grips Mini Micro-Knurl Grips
Stem Forged Alloy Top-Load, 45mm Ext.
Brake Levers Promax XL-373 Two Finger
Brakes Promax DSK-300 Mechanical Disc Brake w/ 160mm Rotor
Pedals Mini DX Alloy, 9/16"
Saddle Haro Slim Plastic Pivotal
Seat Post Alloy Pivotal, 27.2mm

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Black / 20-inch 691840205795 20579 210000032998
