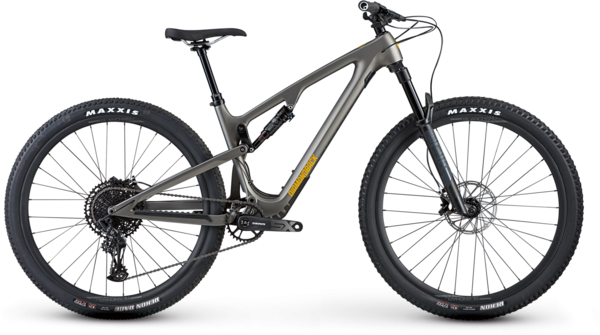

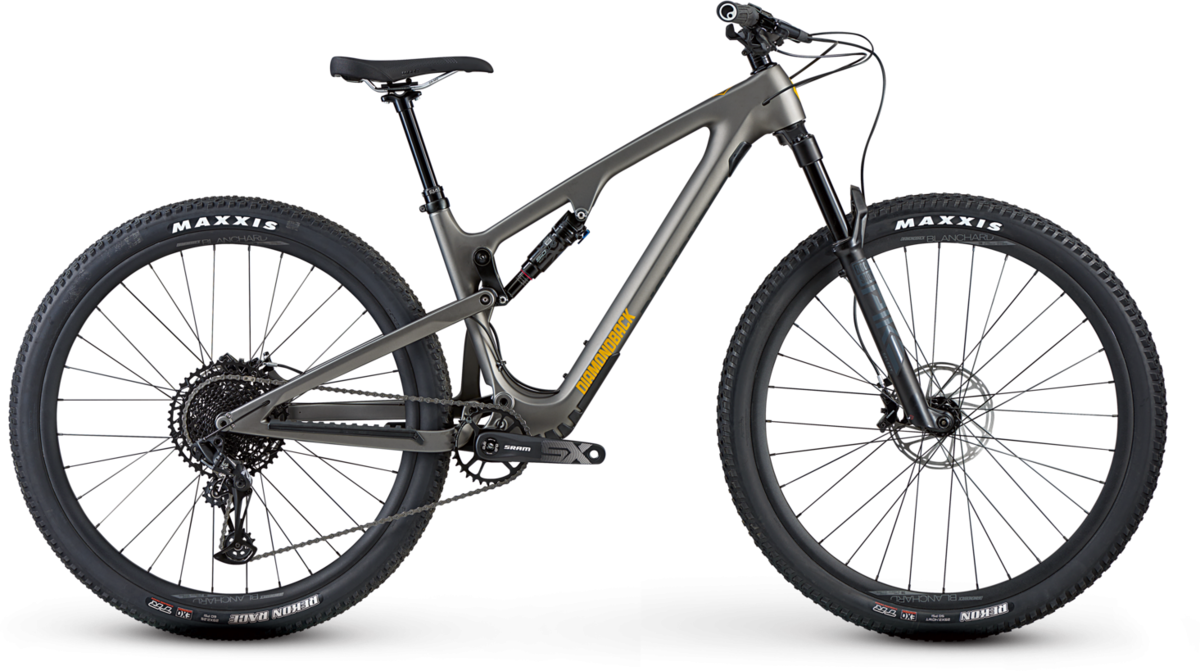

Diamondback Yowie 4C

Diamondback Yowie 4C
  • Color: Metallic Gray Matte
$4,750.00
Color:
Metallic Gray Matte
Please select options

Details

If you're out exploring the trails, this is the carbon XC bike of your dreams. Our all-new Yowie Carbon keeps things comfortable for long rides with 110mm of travel on our Level Link suspension platform and a RockShox Pike Select fork with 130mm of travel. The Sram NX Eagle 1x12 gives you plenty of gears while keeping it light and smooth. SRAM Guide T hydraulic disc brakes, 29x2.4" Maxxis tires in the front and 2.25" in the rear and a KS EXA dropper post ensure you'll have the tools you need to keep the adventure going. Meet the newest member of the Level Link family with this lightweight short travel 29'er.

Sizes:
FRAME SIZEXS/13 5'1"-5'4"SM/15 5'4" - 5'7"MD/17 5'7" - 5'10"LG/19 5'10" - 6'2"XL/21 6'2" - 6'6"
Rider Height - - - - -
Bike Stand Over Height 730.0 mm 730.0 mm 730.0 mm 738.0 mm 740.0 mm
Bike Seat Tube Length 383.0 mm 383.0 mm 410.0 mm 460.0 mm 485.0 mm
Bike Top Tube Length 572.0 mm 592.0 mm 617.0 mm 637.0 mm 660.0 mm
Bike Head Tube Length 90.0 mm 90.0 mm 100.0 mm 110.0 mm 120.0 mm
Bike Head Angle 67.0 ° 67.0 ° 67.0 ° 67.0 ° 67.0 °
Bike Seat Angle 75.0 ° 75.0 ° 75.0 ° 75.0 ° 75.0 °
Bike Wheel Base 1132.0 mm 1152.0 mm 1176.0 mm 1199.0 mm 1223.0 mm
Bike Chain Stay Length 435.0 mm 435.0 mm 435.0 mm 435.0 mm 435.0 mm
Bike Fork Offset 44.0 mm 44.0 mm 44.0 mm 44.0 mm 44.0 mm
Bike Bb Height 336.0 mm 336.0 mm 336.0 mm 336.0 mm 336.0 mm
Bike Bb Drop 14.0 mm 14.0 mm 14.0 mm 14.0 mm 14.0 mm
Bike Stem Length 35.0 mm 35.0 mm 35.0 mm 35.0 mm 35.0 mm
Bike Handlebar Width 780.0 mm 780.0 mm 780.0 mm 780.0 mm 780.0 mm
Bike Crank Length 165.0 mm 170.0 mm 175.0 mm 175.0 mm 175.0 mm
Bike Seat Post Length 435.0 mm 435.0 mm 435.0 mm 485.0 mm 485.0 mm
Bike Stack 604.0 mm 604.0 mm 613.0 mm 622.0 mm 631.0 mm
Bike Reach 410.0 mm 430.0 mm 450.0 mm 470.0 mm 490.0 mm
Bike Fork Travel 150.0 mm 150.0 mm 150.0 mm 150.0 mm 150.0 mm

Specs

Frame Carbon Yowie 29, Monocoque Carbon Front and Rear Triangle, 110mm Travel, Level Link Suspension Platform, Press-Fit, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube, Post Mount Disc Tabs
Fork Rock Shox Pike Select, 130mm of Travel
Rear Shock Rock Shox SIDLuxe Select+
Rims Diamondback Blanchard 28R, Tubeless Compatible, 32h
Spokes 14g Stainless Steel
Tires Maxxis Rekon 29x2.4" Front / Rekon Race 29x2.25" Rear
Bottom Bracket SRAM DUB Press-Fit
Crankset SRAM SX Eagle, 32T
Shifters SRAM SX Eagle, 12 Speed
Rear Derailleur SRAM NX Eagle, 12 Speed
Cassette/Freewheel SRAM SX Eagle 11-50T
Chain SRAM NX Eagle, 12 Speed
Brakes SRAM Guide T, 180mm F/R
Brake Levers SRAM Guide T
Handlebars DB35 Aluminum 780mm Wide, 20mm Rise, 35mm Bar Bore
Stem DB35 Aluminum 35mm Reach, 35mm Bar Bore
Headset FSA IS-2/42/ACB
Seatpost KS EXA Form 900i, Internal Dropper, 31.6 w/Westy 1x Remote
Saddle WTB Volt Chromoly
Pedals DB Aluminum Platform w/Replaceable Pins
Accessories & Extras Tool Kit, DB Shock Pump, Tubeless Valves, DB Mud Guard, Chainstay Protector, Carbon Paste

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Metallic Gray Matte / X-Small 791964601449 02-780-2320 210000041202
Metallic Gray Matte / Small 791964601456 02-780-2321 210000041203
Metallic Gray Matte / Medium 791964601463 02-780-2322 210000041204
Metallic Gray Matte / Large 791964601470 02-780-2323 210000041205
Metallic Gray Matte / X-Large 791964601487 02-780-2324 210000041206
