Diamondback Yowie 2

Diamondback Yowie 2
  • Color: Metallic Blue Matte
This item is currently not available.

Details

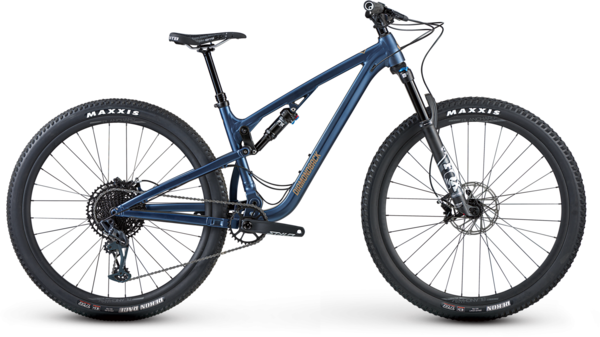

If you’re out exploring the trails, this is the XC bike of your dreams. Our all-new Yowie keeps things comfortable for long rides with 110mm of travel on our Level Link suspension platform and a Fox Rythm 34 130mm fork. The Sram GX Eagle 1×12 gives you plenty of gears while keeping it light and smooth. SRAM Guide T hydraulic disc brakes, 29×2.4? Maxxis tires in the front and 2.25" in the rear and a TranzX dropper post ensure you’ll have the tools you need to keep the adventure going. Meet the newest member of the Level Link family with this short travel 29’er.

Sizes:
FRAME SIZESM/15 5'4"-5'7"MD/17 5'7"-5'10"LG/19 5'10"-6'2"XL/21 6'2"-6'6"
Rider Height - - - -
Bike Stand Over Height 730.0 mm 730.0 mm 738.0 mm 740.0 mm
Bike Seat Tube Length 383.0 mm 410.0 mm 460.0 mm 485.0 mm
Bike Top Tube Length 592.0 mm 617.0 mm 637.0 mm 660.0 mm
Bike Head Tube Length 90.0 mm 100.0 mm 110.0 mm 120.0 mm
Bike Head Angle 67.0 ° 67.0 ° 67.0 ° 67.0 °
Bike Seat Angle 75.0 ° 75.0 ° 75.0 ° 75.0 °
Bike Wheel Base 1152.0 mm 1176.0 mm 1199.0 mm 1223.0 mm
Bike Chain Stay Length 435.0 mm 435.0 mm 435.0 mm 435.0 mm
Bike Fork Offset 44.0 mm 44.0 mm 44.0 mm 44.0 mm
Bike Bb Height 336.0 mm 336.0 mm 336.0 mm 336.0 mm
Bike Bb Drop 40.0 mm 40.0 mm 40.0 mm 40.0 mm
Bike Stem Length 35.0 mm 35.0 mm 35.0 mm 35.0 mm
Bike Handlebar Width 780.0 mm 780.0 mm 780.0 mm 780.0 mm
Bike Crank Length 170.0 mm 175.0 mm 175.0 mm 175.0 mm
Bike Seat Post Length 435.0 mm 435.0 mm 485.0 mm 485.0 mm
Bike Stack 604.0 mm 613.0 mm 622.0 mm 631.0 mm
Bike Reach 430.0 mm 450.0 mm 470.0 mm 490.0 mm
Bike Fork Travel 130.0 mm 130.0 mm 130.0 mm 130.0 mm

Specs

Frame Yowie Alloy 29" Frame, 110mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube
Fork Fox Rythm 34 29", 130mm Travel, Grip w/Sweep Adjust Dampener, 1.5" Tapered Steerer, 110x15mm Thru-axle
Rear Shock Fox Float DPS Evol LV Performance
Rims Diamondback Blanchard 28R, Tubeless Compatible, 32h
Spokes 14g Stainless Steel
Tires Maxxis Rekon 29x2.4" Front / Rekon Race 29x2.25" Rear
Bottom Bracket SRAM DUB
Crankset SRAM Stylo 6K, 32T
Shifters SRAM NX Eagle, 12 Speed
Rear Derailleur SRAM GX Eagle, 12 Speed
Cassette/Freewheel SRAM SX Eagle, 11-50T
Chain SRAM NX Eagle, W/PowerLock
Brakes SRAM Guide T, 180mm F/R
Brake Levers SRAM Guide T
Handlebars DB35 Aluminum 780mm Wide, 20mm Rise, 35mm Bar Bore
Stem DB35 Aluminum 35mm Reach, 35mm Bar Bore
Headset FSA No. 42 Sealed Cartridge
Seatpost TranzX YSP18JL, Internal Dropper
Saddle WTB Koda Comp
Pedals DB Aluminum Platform w/Replaceable Pins
Accessories & Extras Tool Kit, DB Shock Pump, DB Mud Guard

* Subject to change without notice.
